How to Choose the Right Hall Effect Sensor for Your Applications?
Choosing the right Hall Effect sensor requires careful consideration. The demand for Hall Effect sensors is expected to grow significantly, driven by advancements in automotive and consumer electronics. According to a market report by Industry Research, the global Hall Effect sensor market is projected to reach $2.2 billion by 2025. This growth emphasizes the importance of selecting the best sensor for specific applications.
Dr. Emily Chen, a leading expert in sensor technology, notes, “Selecting the right Hall Effect sensor can enhance performance and reliability.” The use of Hall Effect sensors spans various fields, including automotive, biomedical, and industrial automation. Each application has unique requirements, such as sensitivity, voltage range, and temperature stability. A mismatch can lead to performance issues or increased costs.
Details matter when choosing a Hall Effect sensor. Considerations like layout design and environmental conditions can impact functionality. While many manufacturers offer standard options, customization may be necessary for specialized needs. This is where reflection on past choices can yield valuable insights for future decisions. Balancing cost and performance is critical, yet often overlooked in the selection process.
Understanding Hall Effect Sensors and Their Working Principles

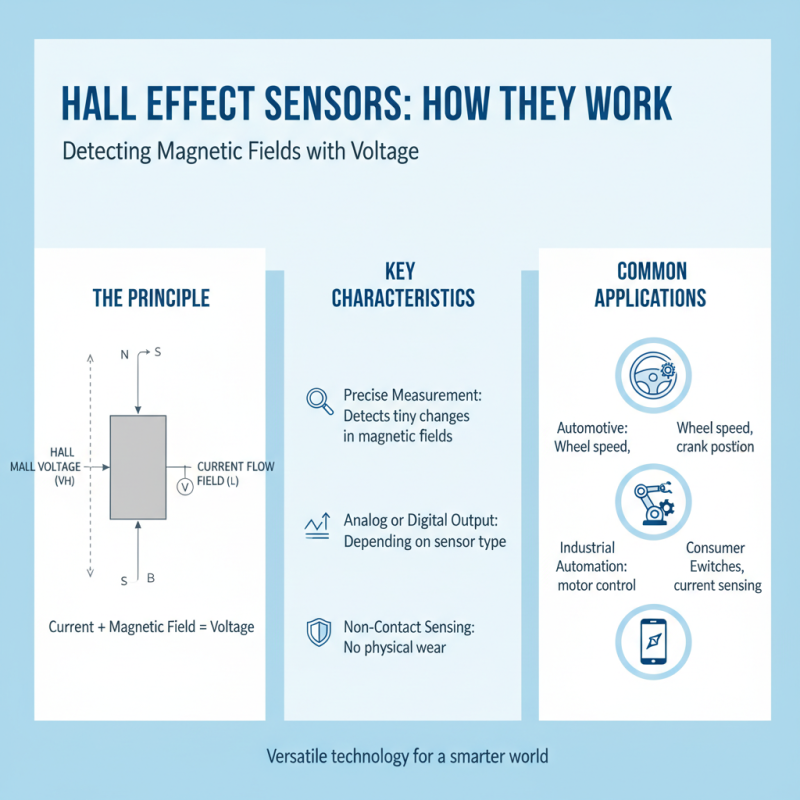

Hall Effect sensors are fascinating devices that leverage the Hall Effect principle to detect magnetic fields. When a conductor carries current, and experiences a magnetic field, voltage is generated perpendicular to the current flow. This means that even slight variations in magnetic fields can be detected, allowing for precise measurements. These sensors are widely used in various applications, from automotive systems to industrial automation.
Understanding the types and configurations of Hall Effect sensors is crucial. There are two main types: linear and latching sensors. Linear sensors provide continuous output based on magnetic strength. Latching sensors, on the other hand, switch states when exposed to a magnetic field, remaining in that state until the opposite field is applied. Choosing the right type depends on your specific needs. However, some may overlook environmental factors like temperature and mechanical stress, which can affect performance. Conducting proper testing in anticipated environments helps ensure reliability.
Identifying Application Requirements for Hall Effect Sensors
When selecting a Hall effect sensor, it's crucial to identify your specific application requirements. These sensors are widely used in motor control, position sensing, and current detection. Understanding the environmental conditions where the sensor will operate is key. High temperatures, humidity, and magnetic interference can affect performance.
Tip: Consider the power supply voltage needed. Different sensors operate at varied voltage levels. Ensure it matches your system’s requirements to avoid potential failures.
Another important aspect is the magnetic field strength. Depending on your application, you may need a sensor that can detect low or high magnetic fields. Assess whether the sensor can maintain accuracy in those conditions.
Tip: Think about the package type as well. Choose one that fits your design space and offers the necessary protection.
While it’s tempting to choose a sensor based solely on specifications, real-world testing is vital. A sensor may look good on paper but perform poorly under operational stress. Always revisit your choices based on practical experiences and data.
Evaluating Sensor Specifications and Performance Criteria
When selecting a Hall Effect sensor, evaluating specifications and performance criteria is crucial. Various applications require different sensor capabilities. For instance, sensitivity plays a vital role. A common industry benchmark is 5 mV/G for many standard sensors, but high-performance models offer up to 15 mV/G. Understanding these parameters can greatly impact your application’s effectiveness.
Temperature range is another essential factor. Many sensors operate between -40°C and 150°C, but specific tasks might need extended ranges. It's important to consider how environmental variations affect consistency. Noise levels also matter. Data indicates that sensors with a noise floor below 1 mV can provide a more stable output, especially in noisy environments, thus determining their reliability in critical applications.
In real-world scenarios, engineers often overlook the impact of mounting methods on performance. Ensure proper alignment for optimal results. In some cases, even minor misalignments can lead to up to a 10% error in readings. Take time to analyze your sensor's intended use. Considering these details may highlight areas needing improvement, leading to more reliable outcomes in your projects.
How to Choose the Right Hall Effect Sensor for Your Applications? - Evaluating Sensor Specifications and Performance Criteria
| Parameter |
Description |
Value |
| Supply Voltage |
Operating voltage for sensor |
3V to 28V |
| Output Type |
Type of electrical output |
Digital (on/off) or Analog (linear) |
| Sensitivity |
Strength of magnetic field detected |
5 to 100 mT |
| Operating Temperature |
Temperature range for sensor operation |
-40°C to +125°C |
| Response Time |
Time taken to respond to a magnetic field change |
1µs to 10µs |
| Power Consumption |
Amount of power the sensor uses |
< 10 mA |
| Package Type |
Form factor of the sensor |
SMD, TO-92, or LGA |
| Linearity |
Accuracy of output relative to input |
±1% to ±3% |
Comparing Different Types of Hall Effect Sensors

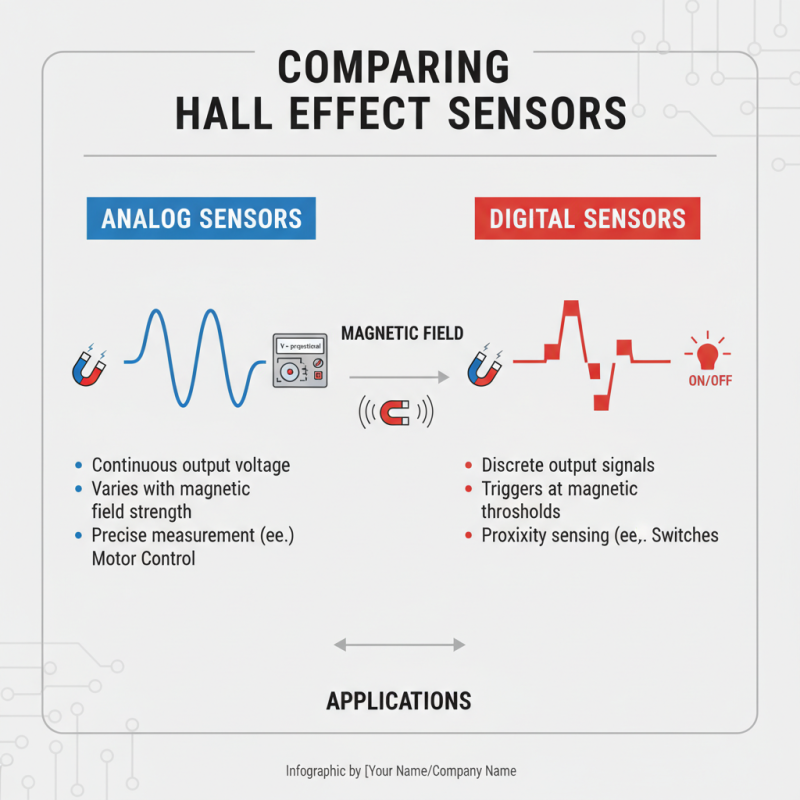

When choosing a Hall Effect sensor, it is crucial to understand the differences among the various types available. Generally, there are two main types: analog and digital Hall Effect sensors. Analog sensors provide a continuous output voltage, which varies proportionally with the magnetic field strength. This feature suits applications that need precise measurements, like motor control. In contrast, digital sensors output discrete signals, triggering at specific magnetic field thresholds. They fit well in applications like proximity sensing.
Consider the sensor's sensitivity and temperature range. Higher sensitivity allows for detecting weaker magnetic fields but can increase noise. Make sure to examine the environmental conditions the sensor will face. Choose a sensor that maintains accuracy in those conditions. Sometimes, a sensor performs well under ideal scenarios but not in real-world applications.
Understand your application requirements thoroughly. Reflect on factors like response time and mounting options. Sometimes, the best sensor isn’t just about specifications. It could be its availability or ease of integration. Conducting thorough testing is critical; prototypes don’t always reveal the full picture. Evaluate options carefully and stay updated on the latest technologies.
Making the Final Selection: Integration and Cost Considerations
When selecting a Hall Effect sensor, integration and cost considerations are crucial. Cost is not solely about the purchase price. Total cost of ownership (TCO) includes installation, maintenance, and eventual replacement. A recent industry report shows that sensors can account for up to 30% of a device's lifecycle costs. This makes it vital to weigh price against performance.
Integration concerns involve compatibility with existing systems. Many Hall Effect sensors require specific configurations to function optimally. Consider the sensor's power requirements, output signal type, and environmental factors. The American National Standards Institute (ANSI) has emphasized that mismatched specifications can lead to failures. Up to 40% of sensor failures are linked to integration issues.
Moreover, choosing sensors with robust support and documentation can reduce risks. Industry surveys report that poor support leads to delays in deployment. Relying on manufacturers with a proven track record helps ensure reliability. In conclusion, while the initial cost is important, the broader picture of integration and performance plays a vital role in the final selection. Balancing all these aspects can lead to a more successful application.
